G114 Heat Resistant Polyimide High Temperature Adhesive Tape Tape for cricut Sublimation

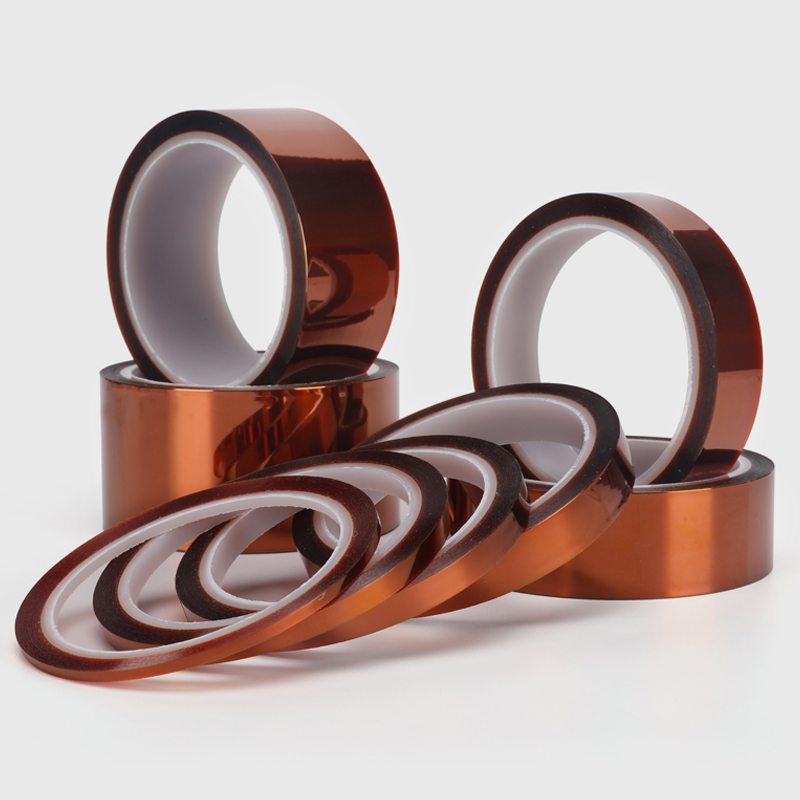

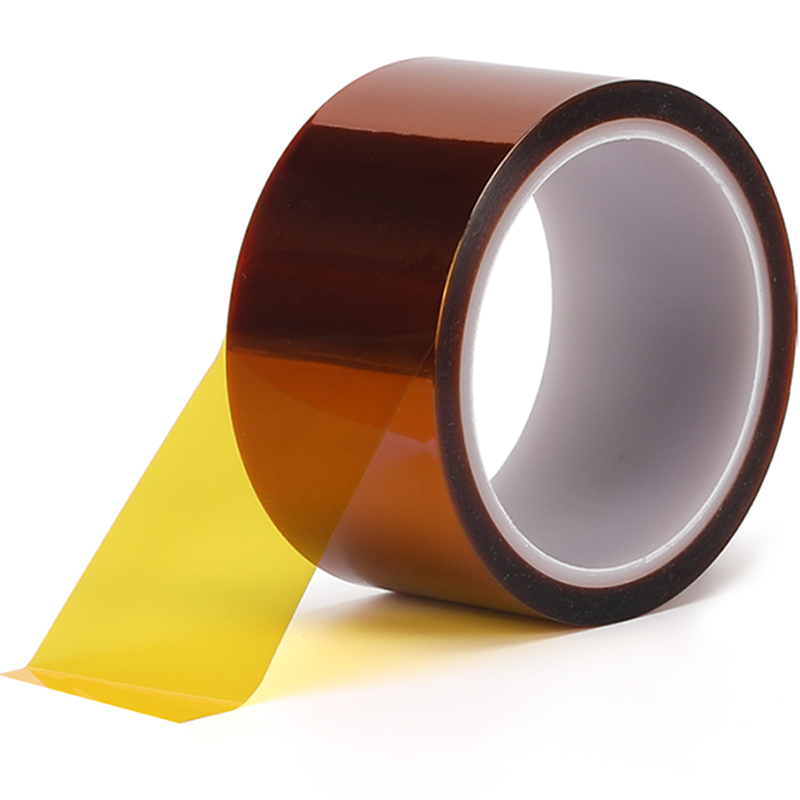

Ming Can Tape G114 Polyimide Tape
High temperature kapton polyimide tape is made of soft polyimide film as backing, single sided coated with high temperature resistant silicone adhesive,with high temperature resistance and low temperature resistance.It can resistance 250 degrees.
Product Details
| Model Number | G114 |
| Material | Polyimide |
| Adhesion | Medium |
| Thickness(um) | 55 |
| Adhesive Type | Silicone |
| Color | Brown |
| Heat Resistant | ≤250℃ |

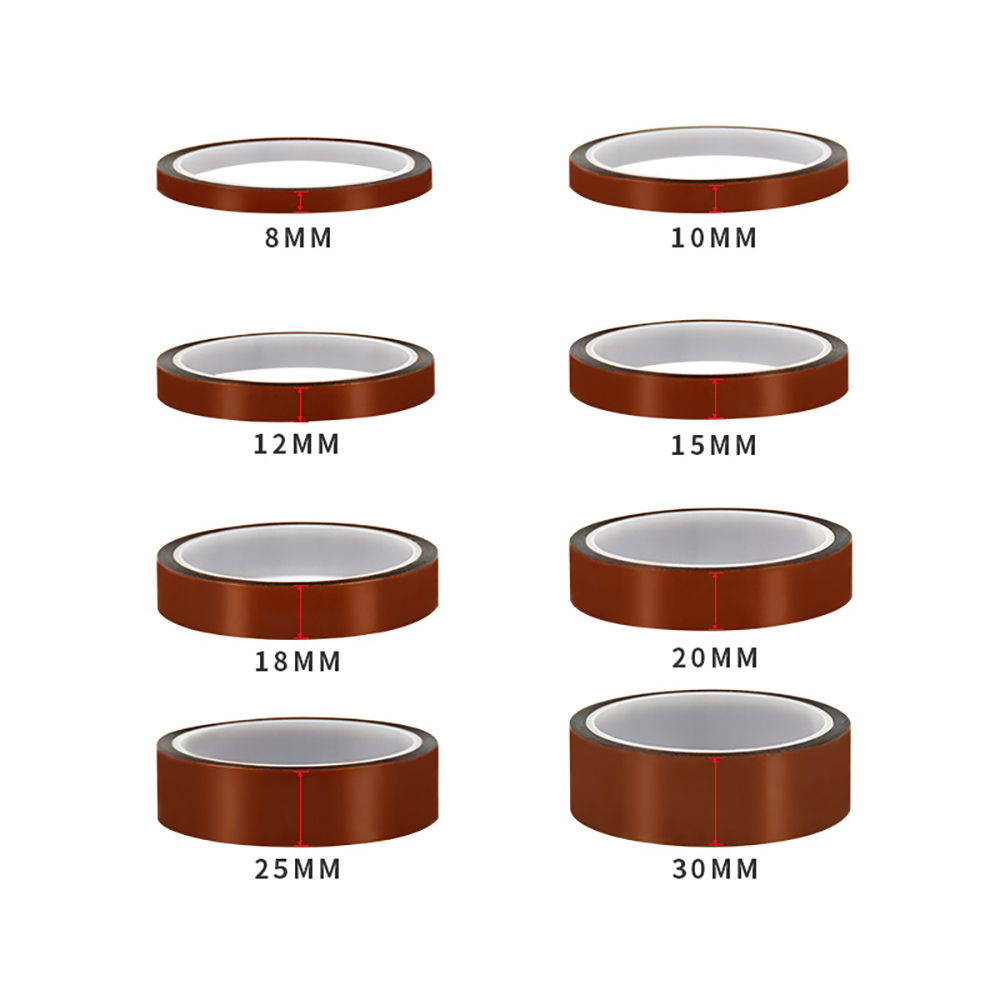

| Tape Width(mm) | 3-500 |
| Length(m) | 33 |
Model Number | Material | Adhesion | Thickness(um) | Adhesive Type | Color | Heat Resistant | Tape Width(mm) | Length |
G114 | Polyimide | Medium | 55 | Silicone | Brown | ≤250℃ | 3-500 | 33 |
Application
Features:
High Temperature Resistance: Up to 250°C
Strong Adhesion: Reliable bonding on various surfaces
Chemical Resistance: Resistant to acids, alkalis, and solvents
No Residue: Clean removal without glue traces
High Insulation: Ideal for electrical insulation applications
Durable Structure: Tear-resistant, abrasion-resistant, and corrosion-resistant
Flexible & Tough: Not easy to break under pressure or friction
Applications:
PCB masking during wave soldering
Coil insulation in motors and transformers
Lithium battery insulation wrapping
Electroplating, electronic component protection
Widely used in electronics, electrical, and plating industries
Test Report
| Test Item-G114 | Test Standard | Test Result |
| Initial Adhesion (Ball No.) | ≥14 | 25 |
| 250°C Peel Strength (N) | 4.0–5.5 | 5.1 |
| Color | — | Amber |
| Substrate (PI Film) | 0.025 mm | 0.025 mm |
| Adhesive (Pressure Sensitive) | 0.025 mm | 0.025 mm |
| Total Thickness | 50 ± 2 μm | 50 μm |
| Temperature Resistance | 250°C | 250°C |
| Peel Test (Quick & Slow Peel) | No adhesive residue | Pass |
Various customization, intimate packaging professional choice to meet the unique needs of your brand!
Single roll individual paper packaging
Customize paper tube
Single roll carton packing
Single roll/multi-roll plastic packaging + external label
Cardboard + plastic seal + individual label
