G13 Free sample coating glass fabric cloth fiberglass heat resistant high temperature silicone adhesive ptfe teflonning insulating tape

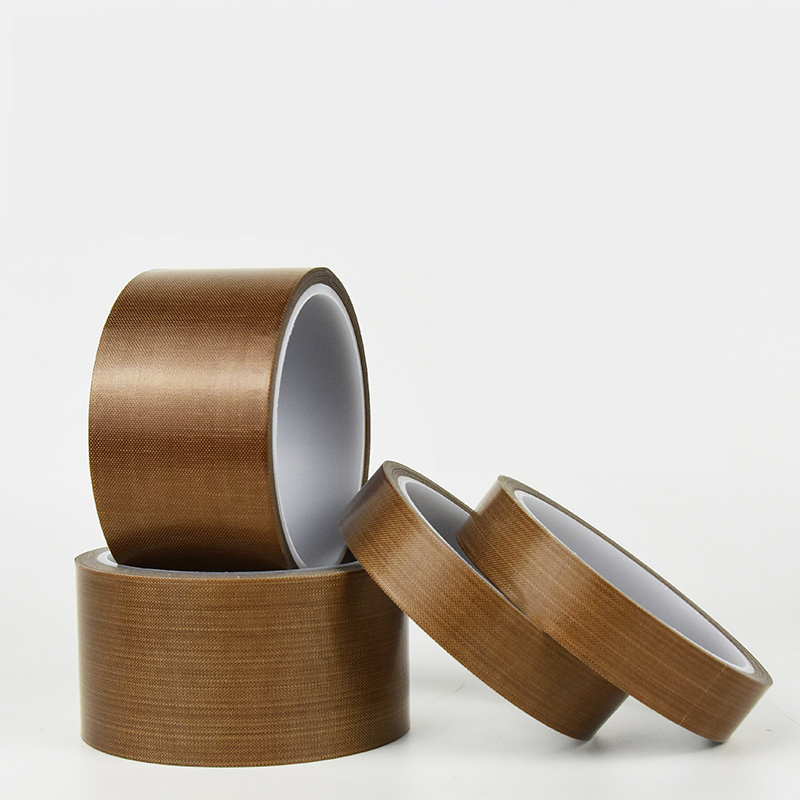

Ming Can Tape G13 PTFE Tape
PTFE tape is made from glass fiber yarn through mechanical weaving into cloth, which soaked with emulsion and dried to semi-finished product, and then coated with silicon adhesive to a high temperature resistant tape PTFE adhesive tape is a kind of high performance, multi-purpose new composite product. It retains the good properties of glass fiber cloth, but also retains the characteristics of Poly tetra fluoroethylene, such as smooth and non-stick surface,insulation,chemical resistance and high temperature resistance.
Product Details
| Model Number | G13 |
| Material | PTFE |
| Adhesion | Medium |
| Thickness(um) | 130/180 |
| Adhesive Type | Silicone |
| Color | Brown |
| Heat Resistant | ≤300℃ |

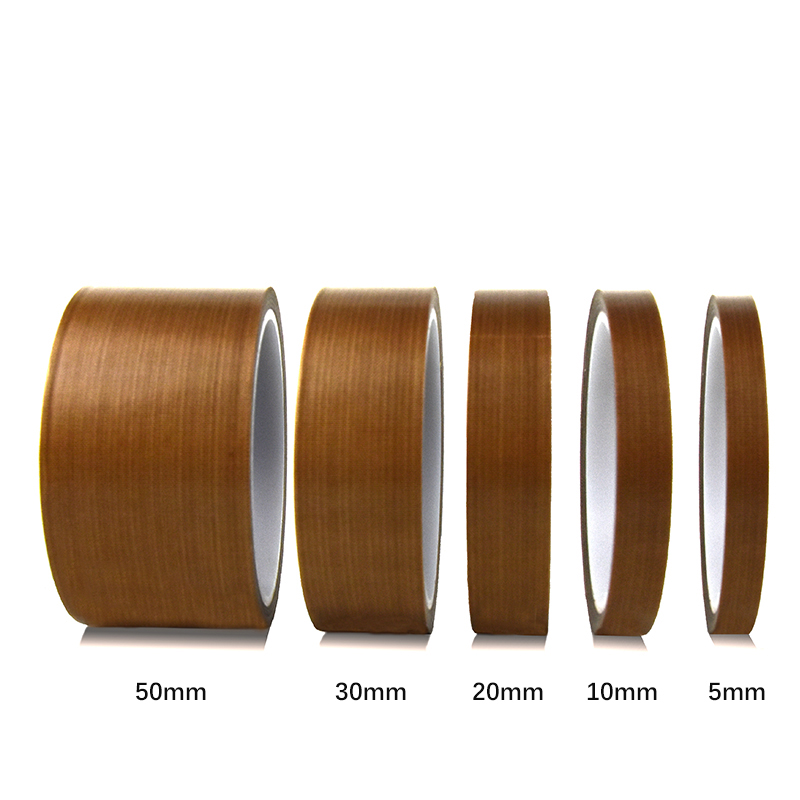

| Tape Width(mm) | 3-600 |
| Length(m) | 10 |
Model Number | Material | Adhesion | Thickness(um) | Adhesive Type | Color | Heat Resistant | Tape Width(mm) | Length |
G13 | PTFE | Medium | 130/180 | Silicone | Brown | ≤300℃ | 3-600 | 10 |
Application
Features:
High Temperature Resistance: Stable performance under high heat

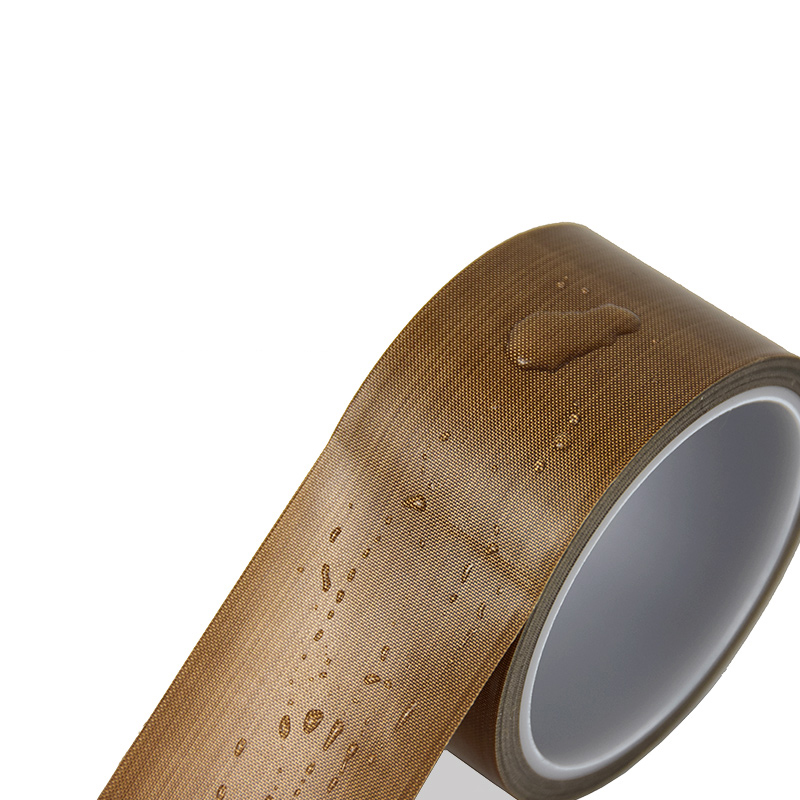

Non-Stick Surface: Excellent release properties; easy to clean
High Insulation: Class H insulating material, suitable for electrical applications
Chemical Resistance: Resistant to acids, alkalis, solvents, and other chemicals
Durable Construction: Strong mechanical strength for long continuous use
Smooth Surface: Reduces friction and prevents sticking
Applications:
Roll wrapping for polyethylene laminators
Endless belts in heat sealing or lamination equipment
Coil insulation for motors and transformers
Sliding materials for metals, plastics, ceramics
Suitable for use in electrical, packaging, and thermal insulation industries
Test Report
| Test Item-G13 | Value |
| Elongation Coefficient | < 5‰ |
| Dielectric Strength | ≥ 5 kV |
| Surface Friction Coefficient | 0.05–0.1 |
| Insulation Resistance | ≥ 10¹² Ω |
| Adhesion Strength (to Steel) | 28 N/100 mm |
| Tensile Strength | 1700 N/100 mm |
| Temperature Resistance Range | -70°C to +260°C |
Various customization, intimate packaging professional choice to meet the unique needs of your brand!
Single roll individual paper packaging
Customize paper tube
Single roll carton packing
Single roll/multi-roll plastic packaging + external label
Cardboard + plastic seal + individual label
