S532 High Temperature Double Sided PET Film Tape
Ming Can Tape S532 PET Tape
S532 is a high-performance double-sided tape made of PET film and acrylic adhesive. It offers excellent adhesion, holding power, and temperature resistance up to 80°C. Designed for precise die-cutting and strong bonding on a variety of surfaces.

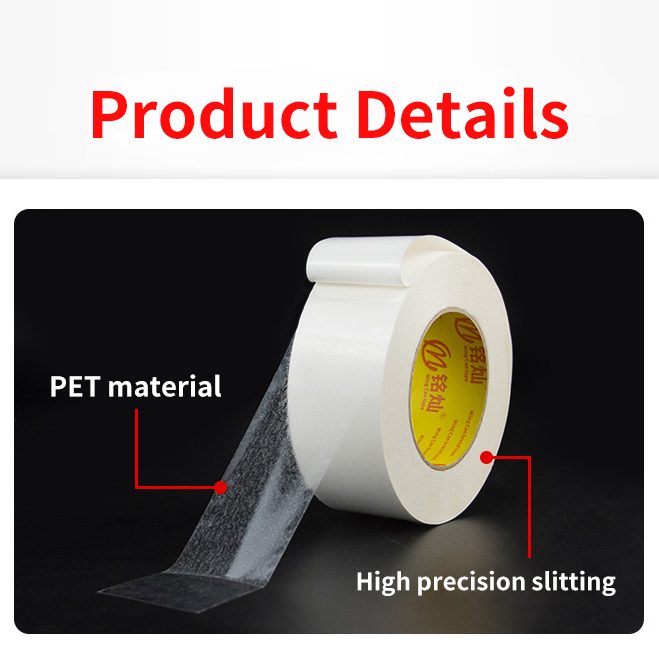

Product Details
| Model Number | S532 |
| Material | PET |
| Adhesion | High |
| Thickness(um) | 55 |
| Adhesive Type | Acrylic |
| Color | Transparent |
| Heat Resistant | ≤80℃ |
| Tape Width(mm) | 3-1250 |
| Length(m) | 50 |
Model Number | Material | Adhesion | Thickness(um) | Adhesive Type | Color | Heat Resistant | Tape Width(mm) | Length(m) |
S532 | PET | High | 55 | Acrylic | Transparent | ≤80℃ | 3-1250 | 50 |
Application
Features:
Strong Adhesion: Excellent bonding to plastic films, metal, and painted surfaces
High Holding Power: Long-lasting performance under stress

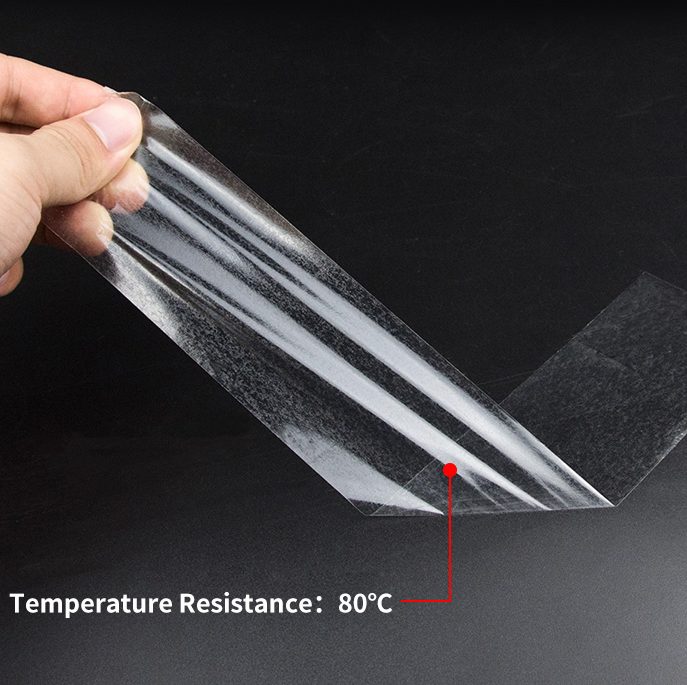

Temperature Resistance: Up to 80°C
Good Die-Cutting Performance: Suitable for precision applications
Thin and Durable: PET backing ensures dimensional stability
Applications:
Fixing of backlight modules and bottom frames
Bonding of components in mobile phones, digital devices
Mounting decorative parts and metal pieces in furniture and advertising industries
Suitable for electronics, appliance assembly, and industrial bonding tasks
Test Report
| Test Item-S532 | Unit | Value | Test Standard / Reference |
| Coating Thickness | mm | 0.050 ± 0.005 | GB/T 7125-2014 |
| 180° Peel Strength (after 20 min, steel plate) | N/24mm | ≥9 | GB/T 2792-2014 |
| Static Shear (24mm × 24mm, 1000g, 5.76 cm²) | min | ≥1440 | GB/T 4851-2014 |
| Initial Adhesion (14# Steel Ball, Inclined Method) | mm | ≤180 | GB/T 4852-2002 |
| Temperature Resistance | ℃ | 80 | GB/T 4851-2014 |
| Tape Color | — | Transparent (Visual Inspection) | — |
| Release Liner | — | White (Visual Inspection) | — |
Various customization, intimate packaging professional choice to meet the unique needs of your brand!
Single roll individual paper packaging
Customize paper tube
Single roll carton packing
Single roll/multi-roll plastic packaging + external label
Cardboard + plastic seal + individual label
